TE CONNECTIVITY  1-1437719-5  Circular Connector, TRIAD 01 Series, Cable Mount Plug, 3 Contacts, Solder Pin, Brass Body

TE CONNECTIVITY 1-1437719-5
TE CONNECTIVITY 1-1437719-5
Ražotāja detaļas Nr.:
1-1437719-5
Pasūtījuma kods:
130722
Produktu klāsts
TRIAD 01 Series
Tehnisko datu lapa:
Skatiet visus tehniskos dokumentus
TE CONNECTIVITY 1-1437719-5
TE CONNECTIVITY 1-1437719-5

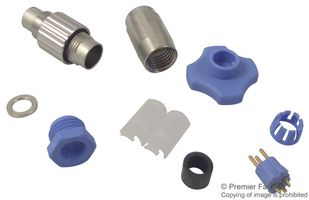

Attēls ir tikai kā piemērs. Lūdzu, skatiet produkta aprakstu.

Produktu pārskats

The 1-1437719-5 is a 3-position male shielded subminiature Circular Connector with pin type contacts, CuZn shell and 24AWG wire size. The small and lightweight system is available as panel-mount headers with solid posts 180degree and 90degree for soldering on PC boards and also with solder cups for wire termination. The PCB version has two board locks and the solder cup version has two solder tabs for grounding. Through the three O-ring design on the panel-mount connectors and in connection with the over-moulded cable assemblies, TRIADTM01 is a liquid and dust tight system according to IP65 protection class (DIN 40050). The reasonable shielding, the small diameters, the over-moulded connector with cable and the use of metallic parts makes TRIADTM01 also useable in harsh environments such as a factory where TRIADTM01 can be used in BUS applications such as CAN or MODULAR too.
  • Small and lightweight, shielded round connector system
  • <6mR Contact resistance
  • 60VAC Operating voltage
  • 625VAC Test voltage
  • <=500 Mating cycles
  • Screw type interlock
  • UL94V-2 Flammability rating

Informācija par produktiem

Product Range:
TRIAD 01 Series
Circular Connector Shell Style:
Cable Mount Plug
No. of Contacts:
3Contacts
Circular Contact Type:
Solder Pin
Coupling Style:
-
Connector Body Material:
Brass Body
Connector Body Plating:
-
Contact Material:
-
Contact Plating:
Gold
SVHC:
No SVHC (15-Jun-2015)

Atrast līdzīgus produktus , kuri ir grupēti pēc kopīgiem atribūtiem

Lietošanas veidi

  • Medical
  • Industrial

Tiesību akti un vides aizsardzība

Izcelsmes valsts:
Germany

Valsts, kurā veikts pēdējais nozīmīgais ražošanas process

Atbilst RoHS:
Tarifa Nr.:
85366990
Svars (kg):
.016
