3452-6616

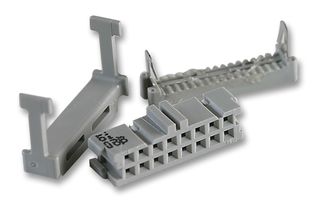

The 3452-6616 is a 16-way 0.100 x 0.100-inch Wiremount Socket for 0.050-inch pitch cable, with gold-plated copper alloy contacts and IDC/IDT termination. This 3000 series socket is glass filled polyester (PBT) insulated, mates with 3M headers, plugs and pin strips for quick connect/disconnect capability. This wiremount socket has open end cover, military polarization with center bump and 16-contacts for plastic strain relief. Transfer adhesive on covers provides precision alignment between connector and cables resulting in high yield terminations.

• Grey colour
• Availability of pull tab to facilitate proper unplugging
• Accepts flat cable or discrete wire
• UL94V-0 Flammability rating
• 1A Current rating
• 1 x 10⁹Ω at 500VDC Insulation resistance

Lietošanas veidi

Industrial
