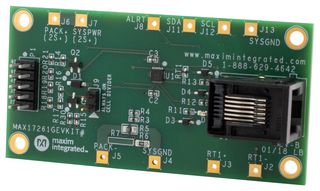

MAX17261GEVKIT#

Evaluation kit for the MAX17261 stand-alone ModelGauge™ m5 host-side fuel-gauge ICs for lithium-ion (Li+) batteries in handheld and portable equipment. Suitable for use in tablets, 2-in-1 laptops, digital still, video and action cameras, medical devices, handheld computers and terminals, financial terminals, mobile printers, augmented/virtual reality devices, robots, E-bikes, battery backups and wireless speakers.

• ModelGauge™ m5 algorithm
• Monitors from 2S+ cell packs
• Battery pack input voltage range of 4.6V to 39.2V
• Thermistor measurement network
• Optional on-board PCB trace sense resistor
• Windows 7 or newer compatible software
• Proven PCB layout
• Fully assembled and tested

Saturs

IC evaluation board, DS91230+ USB interface, RJ-11 connection cable.

Piezīmes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
