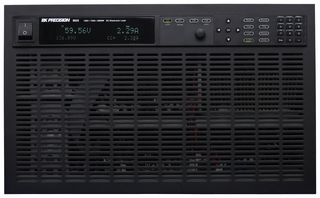

BK8625

8600 series programmable DC electronic load with bright dual-line display. It provides the performance of modular system DC electronic load in a compact benchtop form factor. With fast transient operation speeds up to 25KHz and high 16bit measurement resolution and accuracy this load can be used for testing and evaluating a variety of DC sources such as DC power supplies, DC-DC converters, batteries, battery chargers and photovoltaic arrays.

• CC/CV/CR/CW operating modes
• Store and recall up to 100 setups
• Adjustable slew rate in CC mode
• Short circuit test and list mode function
• Built-in battery test function with voltage level, capacity level and timer stop conditions
• CR-LED mode to simulate the loading behaviour of typical LEDs
• Remote voltage sensing to compensate for the effect of voltage drop in wires
• Thermostatically controlled fan, analogue current control and monitoring
• Standard USB (USBTMC-compliant), RS-232 and GPIB interfaces with SCPI protocol support
• OVP/OCP/OPP/OTP including local and remote reverse voltage (LRV/RRV) protection

Lietošanas veidi

Test & Measurement

Saturs

DC electronic load, User manual, Power cord, Certificate of calibration, Test report.
