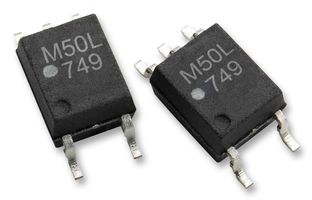

ACPL-M50L-000E

The ACPL-M50L-000E is a 1Mbaud low power Digital Optocoupler uses an insulating layer between the LED and an integrated photon detector to provide electrical insulation between input and output. Separate connections for the photodiode bias and output transistor collector increase the speed up to a hundred times over that of a conventional photo-transistor coupler by reducing the base-collector capacitance.

• Open-collector output
• TTL compatible
• Guaranteed performance from -40 to +105°C temperature range
• 1μs Maximum at 5V low propagation delay

Lietošanas veidi

Communications & Networking, Signal Processing, Power Management

Brīdinājumi

It is advised that normal static precautions be taken in handling and assembly of this component to prevent damage and/or degradation which may be induced by ESD. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
