V900121

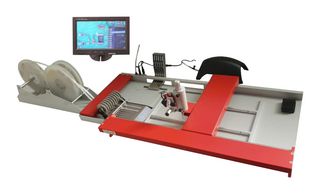

The V900121 is an EASYPLACER.V hand-operated SMT Assembly Manipulator with video, new manual system for the placement of SMT-components. It is a perfect ergonomic station including a lot of functions. Slight arm movement in axis X and Y allows comfortable choosing components and their placing all over the workplace. Place component with the head on the Z axis. Can rotate also easily the component on 360°. A camera located near the vacuum pipette and connected to monitor helps the operator for the placement of fine-pitch components. The solid reliable construction provides a better grip for the operator with a larger working area of 380 x 295mm.

• Perfect ergonomics
• Very efficient working area of 380x295mm
• Placement make easier by camera connected to a 9" TFT LCD monitor, included as standard
• 0201 Placement accuracy
• Arm support assures a comfortable position for operator
• Sensitive head with 360° rotation of pipette
• Efficient lighting built into the arm
• Vacuum pump delivered as standard
• 3 Board supports
• <lt/>70dB(A) Sound level
• 230V at 50/60Hz Electrical supply

Lietošanas veidi

Industrial

Saturs

Placement station, colour camera, TFT monitor, 2x needles, rubber prehension discs and 3x PCB holders
