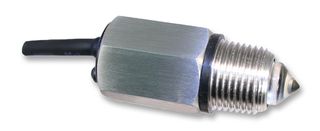

OPT-A4-AR-2

The OPT-A4-AR-2 is an Optical-level Switch works by emitting a beam of infrared light within a prism and measuring the amount of light received. When the measured fluid reaches the sensor the amount of emitted light received drops thus triggering the contacts. As the sensor is detecting the state between material covering or not covering the prism it can be used to detect the presence or absence of fluid thus preventing damage to pumps. Compact unit houses the infrared transmitter, the prism, the receiver and the electronics, there is also an external LED indicator to show the condition of the switch. The sensor requires a power supply of between 10- to 28VDC. The benefit of the modern optical sensor is that there are no moving parts that can retain material and get clogged up or damaged, simply fit and forget.

• IP68 Protection rating
• -10 to 125°C Operating temperature range

Lietošanas veidi

Sensing & Instrumentation
