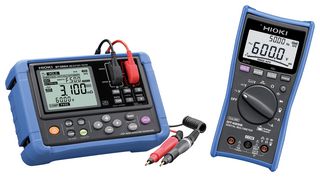

BT3554-51+ FREE DT4256

BT3554-51+FREE DT4256 is a BT3554-50 battery tester bundled with Pin Type Lead 9465-10 and DT4256 digital multimeter. BT3554 battery tester series is a trusted instrument designed for exactly this purpose: Two voltage ranges of 6V and 60V and four resistance ranges from 3mΩ to 3Ω make the BT3554 series the perfect tool for maintenance checks of VRLA batteries, regardless of the battery size and capacity. A complete measurement takes less than two seconds, making this battery tester perfect for use in difficult to reach and confined areas. Differently shaped probe leads are available for convenient access of all installations. An additional temperature sensor (9451S) is also available since temperature does impact the measurement results of battery measurements. DT4256 digital multimeter features AC and DC voltage and current, capacitance and frequency measurements, diode and continuity checks, as well as automatic AC/DC voltage detection and the support of current sensor measurements.

• Battery measurement can be performed while battery is connected to host, without taking it offline
• Measure and save data in as fast as 2 seconds, a 60% improvement from the legacy 3554
• Instantaneously diagnose battery degradation by measuring internal resistance and voltage
• Noise reduction technology improves noise resistance
• Screen and audio guidance simplifies measurement
• Measurement data is linked to site information and saved, reducing management man-hours
• New protector delivers better ergonomic hold and durability in the field

Saturs

BT3554-50 battery tester, Pin type lead 9465-10, DT4256 digital multimeter, Carrying case C1014 x 1, Protector Z5041 x 1, Fuse set Z5050 ×1, Adj board ×1, Neck strap x 1, USB cable x 1, Application software CD (GENNECT One) x 1, AA alkaline battery (LR6) x 8, User manual x 1.

Piezīmes

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
