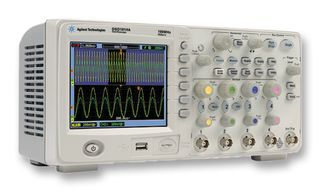

DSO1024A

DSO1024A delivers the performance and features found in bigger scopes and the portability and economical price required in smaller scopes. Education student lab guide and professor slide set downloadable free from Keysight's website. Dimensions: 12.78 W x 6.21 H x 5.08"D. Weight: 6.68 lbs. Order additional accessories separately.

• 200 MHz bandwidth, 4 analogue channels
• 2 GSa/s sample rate and 20 kpts memory half channel
• 5.7-inch colour LCD display with wide viewing angle
• 'True zoom' mode for viewing big picture and details simultaneously
• 23 automatic measurements like frequency and V p-p
• Sequence mode allows record and playback of captured waveforms
• Selectable band pass filtering
• Advanced triggering captures elusive signals while go/no go mask test auto-detects deviant waveforms
• Waveform math and FFT functions provide information instantly
• Front panel overlay, GUI and manual available in 11 languages

Lietošanas veidi

Test & Measurement, Industrial

Saturs

Documentation CD, localised front panel overlay (if language option other than English is chosen), power cord, and 10:1 passive probe for each input channel (4).
