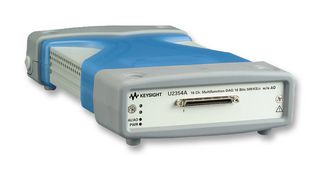

Attēls ir tikai kā piemērs. Lūdzu, skatiet produkta aprakstu.
RažotājsKEYSIGHT TECHNOLOGIES
Ražotāja detaļas Nr.U2354A
Pasūtījuma kods1297808
Produktu klāstsU2300A Series
Tehnisko datu lapa
Vairs netiek ražots
Informācija par produktiem
RažotājsKEYSIGHT TECHNOLOGIES
Ražotāja detaļas Nr.U2354A
Pasūtījuma kods1297808
Produktu klāstsU2300A Series
Tehnisko datu lapa
No. of Channels16Channels
Sampling Rate1MSPS
Input Voltage Max12V
Input Current Max10µA
Bandwidth400kHz
External Height44mm
External Width120mm
External Depth182.4mm
Product RangeU2300A Series
SVHCNo SVHC (17-Jan-2023)
U2354A alternatīvas
Atrasti 2 produkti
Produktu pārskats
U2354A is a 16-channel 500kSa/s USB modular multifunction DAQ without analogue output. It comes with 16SE/8DI channels with 16 bits of resolution.
- High-speed USB 2.0, USBTMC-USB488 standard (compatible with Microsoft Windows operating systems)
- Functions as a standalone or modular unit
- 24-bit programmable TTL input/output channels
- 2 general purpose digital counter channels
- Easy to use: plug-and-play and hot swappable with hi-speed USB 2.0
- Self-calibration capability
Piezīmes
A BenchVue software license (BV0025B) is now included with your instrument. In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
Tehniskie parametri
No. of Channels
16Channels
Input Voltage Max
12V
Bandwidth
400kHz
External Width
120mm
Product Range
U2300A Series
Sampling Rate
1MSPS
Input Current Max
10µA
External Height
44mm
External Depth
182.4mm
SVHC
No SVHC (17-Jan-2023)
Tehniskā dokumentācija (2)
Saistītie produkti
Atrasti 4 produkti
Tiesību akti un vides aizsardzība
Izcelsmes valsts:
Valsts, kurā veikts pēdējais nozīmīgais ražošanas processIzcelsmes valsts:Taiwan
Valsts, kurā veikts pēdējais nozīmīgais ražošanas process
Valsts, kurā veikts pēdējais nozīmīgais ražošanas processIzcelsmes valsts:Taiwan
Valsts, kurā veikts pēdējais nozīmīgais ražošanas process
Tarifa Nr.:90303100
US ECCN:EAR99
EU ECCN:NLR
Atbilst RoHS:Y-Ex
RoHS
Atbilst RoHS prasībām attiecībā uz ftalātiem:Jā
RoHS
SVHC:No SVHC (17-Jan-2023)
Lejupielādēt produkta atbilstības sertifikātu
Produkta atbilstības sertifikāts
Svars (kg):2.36
