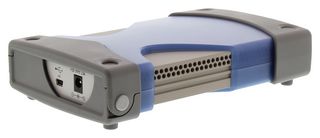

Attēls ir tikai kā piemērs. Lūdzu, skatiet produkta aprakstu.
RažotājsKEYSIGHT TECHNOLOGIES
Ražotāja detaļas Nr.U2356A
Pasūtījuma kods1297810
Produktu klāstsU2300A Series
Tehnisko datu lapa
Vairs netiek ražots
Informācija par produktiem
RažotājsKEYSIGHT TECHNOLOGIES
Ražotāja detaļas Nr.U2356A
Pasūtījuma kods1297810
Produktu klāstsU2300A Series
Tehnisko datu lapa
No. of Channels64Channels
Sampling Rate500kSPS
Input Voltage Max10V
Input Current Max10µA
Bandwidth1.3MHz
External Height44mm
External Width120mm
External Depth182.4mm
Product RangeU2300A Series
SVHCNo SVHC (17-Jan-2023)
U2356A alternatīvas
Atrasti 2 produkti
Produktu pārskats
U2356A is a 64-channel 500kSa/s USB modular multifunction DAQ. It comes with 64SE/32DI channels with 16 bits of resolution.
- High-speed USB 2.0, USBTMC-USB488 standard (compatible with Microsoft Windows operating systems)
- Functions as a standalone or modular unit
- 2 12bit analogue output channels, 1MSa/s analogue output update rate
- 24-bit programmable TTL input/output channels
- 2 general purpose digital counter channels
- Easy to use: plug-and-play and hot swappable with hi-speed USB 2.0
- Self-calibration capability
Piezīmes
A BenchVue software license (BV0025B) is now included with your instrument. In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
Tehniskie parametri
No. of Channels
64Channels
Input Voltage Max
10V
Bandwidth
1.3MHz
External Width
120mm
Product Range
U2300A Series
Sampling Rate
500kSPS
Input Current Max
10µA
External Height
44mm
External Depth
182.4mm
SVHC
No SVHC (17-Jan-2023)
Tehniskā dokumentācija (2)
Saistītie produkti
Atrasti 4 produkti
Tiesību akti un vides aizsardzība
Izcelsmes valsts:
Valsts, kurā veikts pēdējais nozīmīgais ražošanas processIzcelsmes valsts:Taiwan
Valsts, kurā veikts pēdējais nozīmīgais ražošanas process
Valsts, kurā veikts pēdējais nozīmīgais ražošanas processIzcelsmes valsts:Taiwan
Valsts, kurā veikts pēdējais nozīmīgais ražošanas process
Tarifa Nr.:90303100
US ECCN:EAR99
EU ECCN:NLR
Atbilst RoHS:Y-Ex
RoHS
Atbilst RoHS prasībām attiecībā uz ftalātiem:Jā
RoHS
SVHC:No SVHC (17-Jan-2023)
Lejupielādēt produkta atbilstības sertifikātu
Produkta atbilstības sertifikāts
Svars (kg):2.36
