U2701A

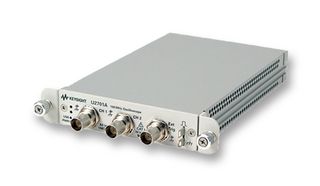

U2701A is a 2 channel, 8-bit, 100MHz modular oscilloscope. It uses the common, non-proprietary standard high-speed USB 2.0 interface that provides ease of connectivity, allowing users to set up and configure their test swiftly with its plug-and-play feature. This ease of use makes the oscilloscopes ideal for the education, design validation, and manufacturing industries.

• Up to 1GSa/s maximum sample rate
• 32Mpts of waveform memory to capture data over a longer period
• Advanced triggering, including edge, pulse width, and TV helps isolate signals
• Compatibility with Hi-Speed USB 2.0, USBTMC 488.2 standards
• Fast Fourier Transform (FFT) and waveform math (addition, subtraction, multiplication, division)
• Dual-play operation: standalone and modular capability
• Dimension is 117.00mm × 180.00mm × 41.00mm (with bumpers)

Saturs

Modular oscilloscope, 12 V, 2 A AC/DC adapter and power cord, USB standard-A to mini-B interface cable, L-mount kit (for modular instrument chassis), Keysight automation-ready CD (contains Keysight IO Libraries Suite), Keysight USB modular products quick start guide and reference CD-ROM, AMM Quick reference card, Certificate of Calibration (CoC).

Piezīmes

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
