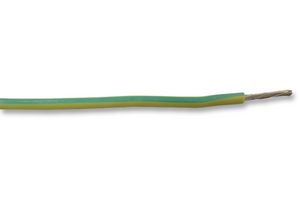

The OLFLEX HEAT 180 SiF series from Lapp Kable are versatile, single core stranded conductors with extended temperature range. These are used in areas with high ambient temperatures where conventional core insulation materials will embrittle after a short while. Typical fields of application includes switchgear cabinet building, appliances and apparatus engineering, electric motor industry, sauna/solarium construction, thermal and heating elements, lighting technology, ventilator engineering, air conditioning technology, oven construction, polymer processing, generator and transformer building.

• CPR: Not Yet Qualified
• Flexible fine wire, tinned copper conductor
• Silicone based insulation
• Halogen-free in accordance with IEC 60754-1
• Flame-retardant according IEC 60332-1-2
• Resistant to oils, alcohols, and chemical substances
• Nominal voltage is 300V/500V
• Temperature range from -50°C to 180°C
• CE approved
• Packaged in shrink wrapped coil

Lietošanas veidi

Industrial, Power Management, Motor Drive & Control, HVAC, Lighting, Thermal Management
