MA330048

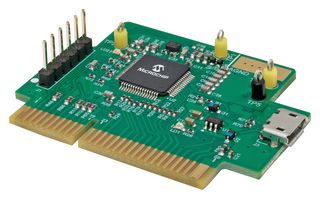

dsPIC33CK256MP506 digital power plug-in module (DP PIM) is a building block for Microchip’s digital power development boards that allows the controller to be easily swapped out for various dsPIC33 family members. The flexibility offered by these DP PIMs can also benefit customer’s development efforts if their prototyping boards incorporate this standardized DP PIM connector.

• Microchip dsPIC33CK256MP506 16-Bit Digital Signal Controller
• ICSP™ programming header
• On-board LDO with power good (PG) function
• Micro USB connector
• MCP2221A USB to UART/I2C serial converter
• Board edge connection interface for analogue inputs/outputs, PWM outputs and GPIO ports
• Test point loop for DAC output

Piezīmes

Compatible with digital power development board (Part No. DM330029) and low voltage PFC development board (Part No. DV330101).
