19006-0011

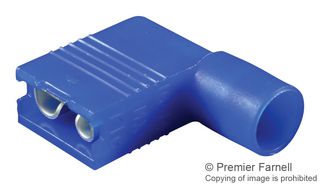

Quick Disconnect Terminal, Avikrimp 19006, Female Quick Disconnect, 6.35mm x 0.81mm
548 Tagad varat rezervēt krājumus
| Daudzums | |
|---|---|
| 1+ | 0,536 € |
| 10+ | 0,505 € |
| 50+ | 0,474 € |
| 100+ | 0,442 € |
| 500+ | 0,411 € |
| 1000+ | 0,380 € |
Informācija par produktiem
Produktu pārskats
The 19006-0011 is an Avikrimp™ female flag quick disconnect made of brass with tin plated finish for 16 to 14AWG wire. This 190006 series fully insulated quick disconnect comes with nylon (PA) insulation and closed barrel. Flags are used when there is a space constraint and a regular straight quick disconnect is too large. Providing fast and reliable connection and disconnection of two wires, fully-insulated quick-disconnect terminals are available in a variety of options to meet industry requirements.
- Glow-wire compliant
- Accommodates multiple standard tab sizes
- Provides flexibility for a wide variety of applications
- Provides space-savings designs
- Ensures optimum safety from electric shock
- UL94V-2 flammability rating
- Maximum voltage is 600V
- Operating temperature range from -65°C to +105°C
Lietošanas veidi
Automotive, Consumer Electronics, Industrial
Tehniskie parametri
Avikrimp 19006
6.35mm x 0.81mm
16AWG
Blue
Nylon (Polyamide)
No SVHC (21-Jan-2025)
Female Quick Disconnect
0.25" x 0.032"
14AWG
2mm²
Brass
Tehniskā dokumentācija (5)
19006-0011 alternatīvas
Atrasti 4 produkti
Saistītie produkti
Atrasts 1 produkts
Tiesību akti un vides aizsardzība
Valsts, kurā veikts pēdējais nozīmīgais ražošanas processIzcelsmes valsts:United States
Valsts, kurā veikts pēdējais nozīmīgais ražošanas process
RoHS
RoHS
Produkta atbilstības sertifikāts
