19038-0001

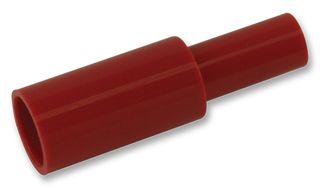

The 19038-0001 is an InsulKrimp™ female Snap receptacle Terminal made of copper with tin plated finish for 22 to 18AWG wire. It fits 3.96mm diameter male plug. This 19038 series fully insulated receptacle terminal comes with PVC insulation and closed barrel. Molex snap receptacle terminal is used in a variety of applications where a "quick disconnect" connection is desired. It is ideal for applications with space limitations, the round bullet like plug "snaps" into the female receptacle. Similar to other quick disconnects, the male and female terminals can be connected and disconnected multiple times.

• Intermateable with other industry standard plugs and receptacles
• Designed for multi-connections and disconnections
• Provides design engineers a choice of size and current rating
• Prevents accidental shock
• UL94V-0 flammability rating
• Maximum voltage is 600V

Lietošanas veidi

Commercial Vehicle, Consumer Electronics
