1AS1T2B4M6RE

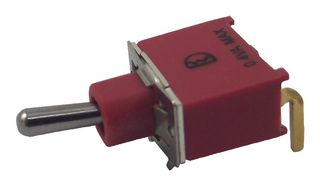

The 1AS1T2B4M6RE is a SPDT non-illuminated through-hole PCB-mount Toggle Switch with ON-ON switch function and solder switch terminal. It has glass filled nylon 66 heat stabilized case and bushing, chrome-plated brass with internal, O-ring seal standard actuator and stainless steel switch support retainer with tin-plated brass or steel switch support.

• Mounting bracket solders directly to PCB
• Plain bush for easy front panel removal
• Process sealed to withstand machine soldering and pressure wash cleaning
• 1000MΩ Minimum insulation resistance
• 1000VRMS Dielectric strength at sea level
• 30000-cycle Make-and-break mechanical life
• -30 to 85°C Operating temperature range
• Multicomp Pro products are rated 4.6 out of 5 stars
• 12 month limited warranty *view Terms & Conditions for details
• 96% of customers would recommend to a friend

Lietošanas veidi

Industrial
