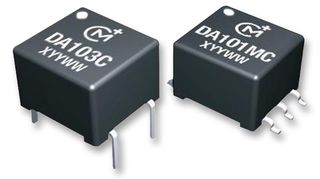

DA103MC

The DA103MC is an Audio Transformer used for digital audio data transmission. This transformer is designed to improve the balance of transmitter and receiver circuitry in hi-fi equipment, video games and other applications requiring high-performance digital audio transmission. Compliant with AES/EBU recommendations for the digital audio interface, offering optimized shunt capacitance between primary and secondary windings. Capable of operating over the audio data rate frequency range, providing isolation from 50 to 60Hz noise.

• Compatible with leading chip sets
• 2kVrms Isolation
• Industry-standard pinout
• Surface mount option
• UL94V-0 package materials
• Low profile
• Suitable for both 75 & 110Ω circuits
• Toroidal construction
• Compliant with AES/EBU standards
• Fully encapsulated

Lietošanas veidi

Audio
