781438-01

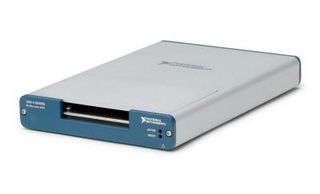

Multifunction I/O Device, USB-6341, 500 kSPS, 16 bit, 16 Input, 2 Output, 24 I/O, ± 10 V, DAQ, Screw
1 Tagad varat rezervēt krājumus
| Daudzums | |
|---|---|
| 1+ | 1 916,000 € |
Informācija par produktiem
Produktu pārskats
781438-01 is a USB-6341 multifunction I/O device offers analogue I/O, digital I/O, and four 32-bit counters/timers for PWM, encoder, frequency, event counting, and more. On-board NI-STC3 timing and synchronisation technology delivers advanced timing functionality, including independent analogue and digital timing engines and retriggerable measurement tasks. The USB-6341 is well suited for a broad range of applications, from basic data logging to control and test automation. The included NI-DAQmx driver and configuration utility simplify configuration and measurements.
- USB 2.0 Bus connector
Tehniskie parametri
Multifunction I/O Device
16bit
2Channels
± 200mV to ± 10V
NI DAQ Devices
Lead (21-Jan-2025)
500kSPS
16Channels
24I/O's
0°C to +45°C
USB-6341
