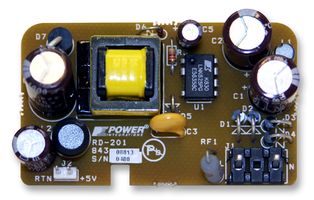

RDK-201

The RDK-201 is a universal input, 5V, 6W output flyback power supply based on the LinkSwitch-CV family of devices and utilizes the LNK625PG. The LNK625PG provides very tight constant voltage performance. The circuit is designed to operate from 90VAC to 265VAC input, with an output voltage of 5V providing a maximum load current of 1.2A. It consumes very little standby power and uses no Y capacitor to meet stringent EMI requirements. The adapter also meets and exceeds both CEC and energy star 2.0 regulations.

• Eliminates optocoupler and all secondary side control circuitry
• Easily meets all existing and proposed international energy efficiency standards
• ON/OFF control provides constant efficiency event at very light loads
• No load consumption less then 100mW at 265VAC
• Meets energy star 2.0 active mode efficiency
• 76 percent vs 70 percent requirement at board
• 73 % vs 70 % requirement at end of 6ft, 315mW output cable
• Over temperature protection
• Auto restart output short circuit and open loop protection
• Easy compliance to EN550022 and CISPR-22 class B EMI standards
