RDK-91
Reference Design Kit, Flyback 12W Power Supply, Using TinySwitch®-III IC

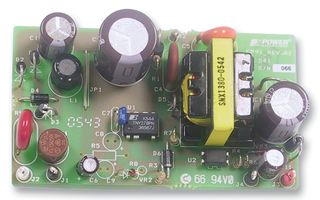

Attēls ir tikai kā piemērs. Lūdzu, skatiet produkta aprakstu.
Vairs nav pieejams noliktavā
Informācija par produktiem
RažotājsPOWER INTEGRATIONS
Ražotāja detaļas Nr.RDK-91
Pasūtījuma kods1500883
Tehnisko datu lapa
Silicon ManufacturerPower Integrations
Silicon Core NumberTNY278PG
Kit Application TypePower Management
Application Sub TypeFlyback Controller
Core Architecture-
Core Sub-Architecture-
Silicon Family Name-
Kit ContentsSamples, Fully Functional Reference Board and Complete Documentation
Product Range-
SVHCNo SVHC (15-Jan-2018)
Produktu pārskats
The RDK-91 is a universal input, 12V, 1A flyback power supply using a TNY278PG device from the Tinyswitch-III family of ICs. The board provides a number of user configurable options which are designed to demonstrate the features and flexibility of the TinySwitch-III family. These include easy adjustment of the device current limit for increased output power or higher efficiency operation, and a latched output overvoltage shutdown.
- Meets all existing and proposed harmonized energy efficiency standards including
- No load consumption 140mW at 265VAC (no bias winding required)
- Greater then 75% active mode efficiency (exceeds standards requirement of 71%)
- BP/M capacitor value selects power MOSFET current limit for greater design flexibility
- Output overvoltage protection using primary bias winding sensed shutdown
- Increases MOSFET and magnetics power delivery
- Reduces overload power, which lowers output diode and capacitor costs
- Integrated TinySwitch-III safety/reliability
- Meets EN550022 and CISPR-22 class B conducted EMI with greater then 12dBµV margin
- Meets IEC61000-4-5 class 3 AC line surge
