FPL1007-P6

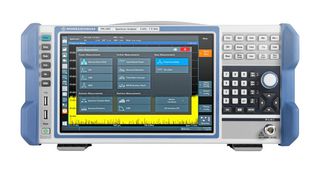

FPL1007-P6 is a 5KHz to 7.5GHz signal and spectrum analyser bundle. This spectrum analyser combines excellent RF performance with a small footprint. The light weight and optional battery/DC power make it the ideal instrument for the lab and in the field. Operating the multipoint touchscreen instrument is intuitive and fun.

• One instrument for multiple tasks (spectrum analysis, power meter, analogue, digital signal analysis)
• Fast and easy integration for automated tests
• DANL at 1GHz -166dBm, TOI at 1GHz is typically +20dBm
• Phase noise at 1GHz (10kHz offset) is typically -108dBc (1Hz)
• Spurious response is typically <lt/> –70dBc
• MultiView with sequencer
• Spectrum analysis from 5KHz
• High-resolution (1280 x 800 pixel) multi-touch screen
• Portability, optional battery and 12 V/24 V DC power

Saturs

FPL1007 spectrum analyser, FPL1-B4 OCXO frequency reference, FPL1-B5 additional interfaces, FPL1-B9 internal generator, FPL1-B10 GPIB interface, FPL1-B22 RF preamplifier, FPL1-B25 1dB step attenuator, FPL1-K7 analogue modulation analysis, FPL1-K54 EMI measurement application, Power cable and quick start guide.
