R&S® FPL-1026-P1

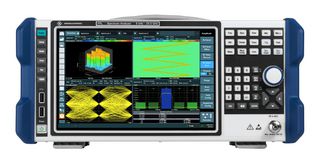

R&S® FPL-1026-P1 is a spectrum analyser package. FPL1026-P1 is a package with the most popular HW options to get the maximum performance out of the R&S®FPL1026. Target customers include education, general purpose, general R&D market, industrial components and research, start-ups, production of RF equipment and components, low budget labs. R&S®FPL1026 signal and spectrum analyser makes measuring fast and simple. The intuitive touchscreen is straightforward and easy to use. With solid RF performance, light weight and small footprint, the R&S®FPL1000 combines the functions of a benchtop instrument with the portability of a handheld instrument.

• 5KHz to 26GHz frequency range
• SSB phase noise: –108dBc (1Hz) at 10KHz offset to the 1GHz carrier
• DANL with preamplifier: –160dBm from 10MHz to 2GHz
• Gated sweep, narrowband resolution filters and spectrogram measurements as standard
• 10.1" high-resolution display
• Two USB 2.0 ports for storage media and connecting accessories
• Precise spectral measurements due to low phase noise
• 3 year warranty

Saturs

R&S®FPL1026 spectrum analyser(5KHz to 26.5GHz), R&S®FPL1-B4 OCXO reference frequency, R&S®FPL1-B5 additional interfaces, R&S®FPL1-B22 RF preamplifier, R&S®FPL1-B25 1dB steps for electronic attenuator, Power cable, Quick start guide.
