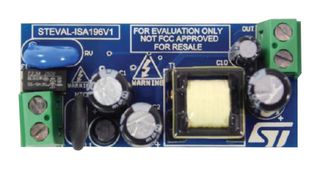

STEVAL-ISA196V1

Evaluation board implements a fly back converter (5V/1.2A) wide range mains developed for general purpose applications. The core of the application is the VIPer11, a new off-line high voltage converter from the VIPerPlus family. The device is a high-voltage converter that intelligently integrates an 800 V rugged power MOSFET with PWM current-mode control. The main characteristics of the evaluation board are its single layer, small size and minimal BOM, high efficiency and low standby consumption.

• 85VAC to 265VAC universal AC main input voltage range
• 6W rated output power
• No load input power at 230 VAC: <lt/> 10mW
• Active mode efficiency <gt/> 78%

Piezīmes

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
