9250

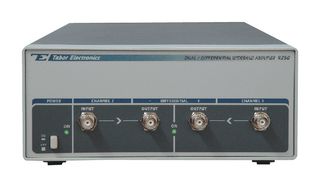

9250 is a bench-top, 2U, half 19" rack size, fully metal case dual channel amplifier. The instrument can be configured to be used as two, single-ended independent channels, or as a one input with two differential outputs. The amplifier case was designed to stack on top or below other Tabor products. It also can be mounted alongside a Tabor generator in a standard 19" rack. The waveform-amplifier combo is an ideal solution for virtually any high-voltage, wide bandwidth application.

• Large signal bandwidth to 15MHz
• Small signal bandwidth to 30MHz
• High amplitude to 40Vp-p (into high impedance)
• Slew rate to 200V/µs
• Low distortion
• Custom configuration of gain, input impedance, output impedance, output configuration
