Informācija par produktiem
RažotājsTOA ELECTRONICS
Ražotāja detaļas Nr.H-2
Pasūtījuma kods3403655
Tehnisko datu lapa
Frequency Response Min100Hz
Frequency Response Max20kHz
External Height111mm
External Width268mm
Product Range-
Produktu pārskats

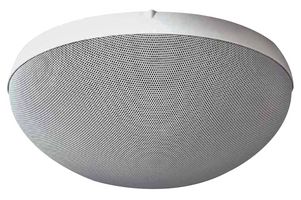

The H-2 is a dome-shaped, small surface-mount 2-way speaker that ensures quality sound reproduction. The angle of speaker can be adjusted for 360 degrees parallel to the mounting surface.
- Smooth curved surface allows it to blend in with the interiors of most modern buildings
- A 10cm woofer featuring high input produces powerful low frequency sound despite its small size
- 1" balanced dome tweeter features ferro-fluid to ensure superb transient response characteristics for clear, high sound capabilities
- Designed with an emphasis on easy installation and safety, as well as easier conduit wiring
- Built-in matching transformer permits the speaker to be used for both high and low impedance applications
- For low impedance applications either the 4Ω or 16Ω terminal can be selected
- Detachable screw terminals facilitate connection. Dual positive and negative terminals also facilitate bridge connections
- Enclosure and grill constructed from fire resistant ABS
- Detachable screw terminals facilitate connection. dual positive and negative terminals also facilitate bridge connections
- The structure of the speakers grille is specially designed for ease of refinishing and repainting
- 120W (Continuous program / 4Ω), 40W (continuous pink noise / 4Ω, 50 - 20kHz)
- Rated 12W (16Ω, 70V/100V line)
- Impedance: 4Ω Direct, 16Ω Transformer
Tehniskie parametri
Frequency Response Min
100Hz
External Height
111mm
Product Range
-
Frequency Response Max
20kHz
External Width
268mm
Tehniskā dokumentācija (2)
Tiesību akti un vides aizsardzība
Izcelsmes valsts:
Valsts, kurā veikts pēdējais nozīmīgais ražošanas processIzcelsmes valsts:Japan
Valsts, kurā veikts pēdējais nozīmīgais ražošanas process
Valsts, kurā veikts pēdējais nozīmīgais ražošanas processIzcelsmes valsts:Japan
Valsts, kurā veikts pēdējais nozīmīgais ražošanas process
Tarifa Nr.:85181095
US ECCN:EAR99
EU ECCN:NLR
Atbilst RoHS:Jā
RoHS
Atbilst RoHS prasībām attiecībā uz ftalātiem:Jāiesaka
Lejupielādēt produkta atbilstības sertifikātu
Produkta atbilstības sertifikāts
Svars (kg):2.893
