DM164136

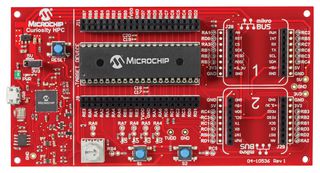

The DM164136 is a curiosity high pin count (HPC) development board. It supports Microchip's 28 pin and 40 pin 8bit PIC MCUs. Two unique PDIP sockets are surrounded by dual-row expansion headers which allow for connectivity to all pins on the PIC MCUs. Programming/debugging is accomplished through the PICkit On Board (PKOB), eliminating the need for an external programming/debugging tool. The development board includes a set of four indication LEDs, a potentiometer and push-button switches. Additionally, the Curiosity HPC board integrates two MikroElektronika microBUS sockets which accommodate a variety of plug-in click board modules that can be used for application development. The curiosity HPC development board can be used with either MPLAB X integrated development environment (IDE, version 3.0 or higher) or MPLAB Xpress IDE.

• Power is supplied by the Micro-USB connector on the left of the board
• Cost-effective
• PICŠ MCU socket for 28 pin microcontroller & PICŠ MCU socket for 40 pin microcontroller
• 3.3V/5V power jumper, USB micro connector
• Dual-row expansion headers
• Push button SW1, mikroBUSŒ click board socket 1
• Push button SW2, mikroBUSŒ click board socket 2
• Potentiometer

Saturs

Curiosity high pin count (HPC) development board, Quick start guide, PIC16F18875 MCU.

Piezīmes

90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
